Drive-in Racking

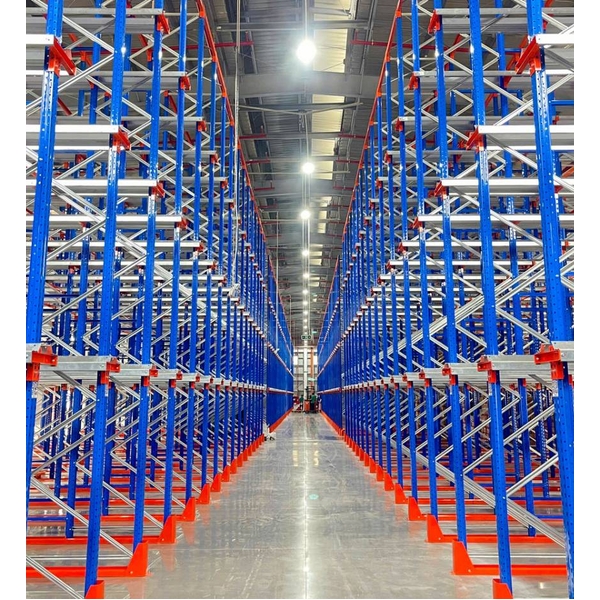

Drive-In Pallet Racking is a high-density storage solution designed to maximise warehouse space utilisation. The system allows forklifts to drive directly into racking lanes for pallet storage and retrieval, significantly reducing the number of aisles required.
All Filters
Drive-in Racking
SKU code: 594316
Maximise pallet capacity with high-density storage.
Drive-In Pallet Racking is a high-density storage system designed to reduce the amount of warehouse floor space dedicated to forklift aisles. Instead of accessing every pallet from a separate aisle, forklifts enter directly into designated storage lanes. Pallets are positioned multiple locations deep on continuous support rails, allowing significantly more of the warehouse footprint to be dedicated to storage. Standard Drive-In configurations generally operate on a Last-In, First-Out basis, making them best suited to warehouses storing larger quantities of the same or similar products. Drive-Through configurations can provide access from opposite ends where a FIFO approach is required. Retail Fixtures Australia can tailor the configuration around your warehouse dimensions, pallet profile, load requirements and stock rotation.
- High-density pallet storage that makes greater use of warehouse volume
- Reduces the number of forklift aisles required
- Well suited to large quantities of similar SKUs and bulk storage
- Standard LIFO basis or optional FIFO via Drive-Through configurations
- Maximises footprint without requiring fully automated systems
- Ideal for temperature-controlled cold and freezer storage
Need help deciding if Double Deep Racking suits your warehouse?
Our team can assess your warehouse layout, stock profile, pallet sizes, load requirements and handling equipment to recommend a practical configuration.
Talk to our racking team →Maximise pallet capacity with high-density storage.
Drive-In Pallet Racking is a high-density storage system designed to reduce the amount of warehouse floor space dedicated to forklift aisles. Instead of accessing every pallet from a separate aisle, forklifts enter directly into designated storage lanes. Pallets are positioned multiple locations deep on continuous support rails, allowing significantly more of the warehouse footprint to be dedicated to storage. Standard Drive-In configurations generally operate on a Last-In, First-Out basis, making them best suited to warehouses storing larger quantities of the same or similar products. Drive-Through configurations can provide access from opposite ends where a FIFO approach is required. Retail Fixtures Australia can tailor the configuration around your warehouse dimensions, pallet profile, load requirements and stock rotation.
- High-density pallet storage that makes greater use of warehouse volume
- Reduces the number of forklift aisles required
- Well suited to large quantities of similar SKUs and bulk storage
- Standard LIFO basis or optional FIFO via Drive-Through configurations
- Maximises footprint without requiring fully automated systems
- Ideal for temperature-controlled cold and freezer storage
| SKU | 594316 |
Drive-in Racking Specifications
| Load capacity | 1000 kg/pallet |
|---|---|
| Warehouse space saving | 80% (catalogue claim) |
| Picking method | Forklift |
| Storage depth | Up to 10-12 pallets deep |
| Storage height | Up to 6-7 pallets high |
Be The First To Review This Product!
Help other retailfixturesaustralia.com.au users shop smarter by writing reviews for products you have purchased.
Related Products in this Category
Frequently Asked Questions
Standard Drive-In systems normally operate on LIFO. A Drive-Through configuration may be considered where access from both ends and FIFO movement are required.
Yes. Forklifts travel inside the storage lanes to place and retrieve pallets.
It can be particularly effective in cold and freezer facilities where maximising storage density is important.
It is generally best for businesses holding multiple pallets of the same or similar SKU.
Expansion may be possible depending on the building, existing system and engineering requirements.
The right option depends on your required storage density, pallet accessibility, forklift equipment and stock rotation. Retail Fixtures Australia can compare the available configurations for your facility.
