WAREHOUSE RACKING
Push Back Racking
Increase storage density while maintaining efficient pallet access. Push Back Pallet Racking stores multiple pallets in depth and uses gravity to bring the next pallet forward for fast, convenient retrieval.
All Filters
Push Back Racking
SKU code: 594317
High-density pallet storage with efficient single-aisle access.

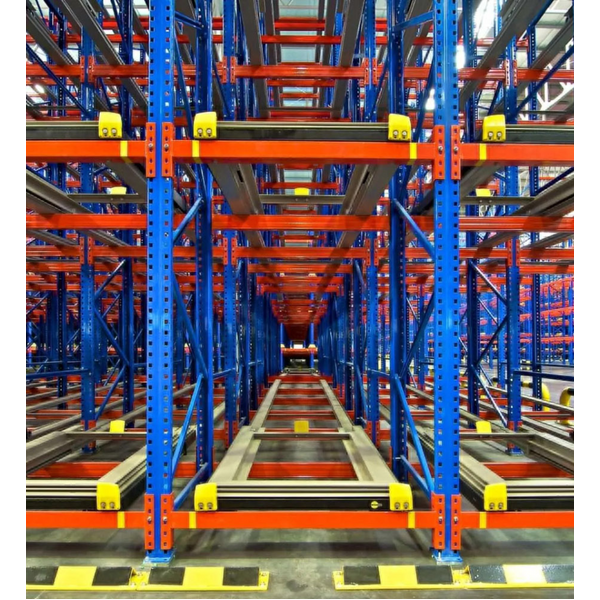

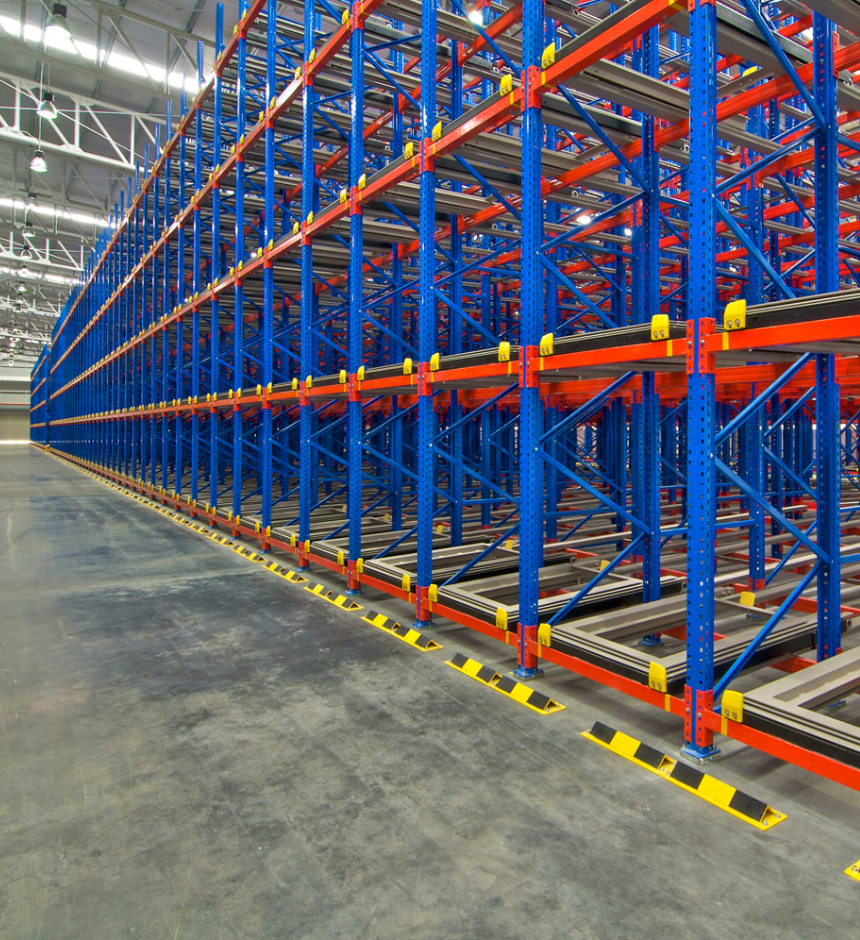

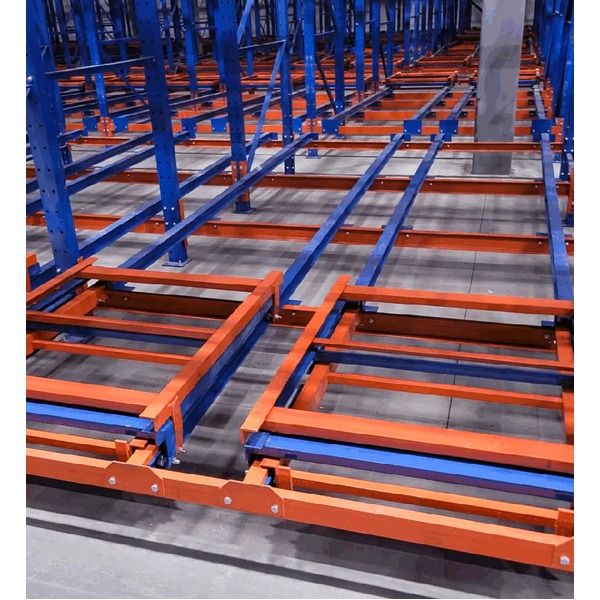

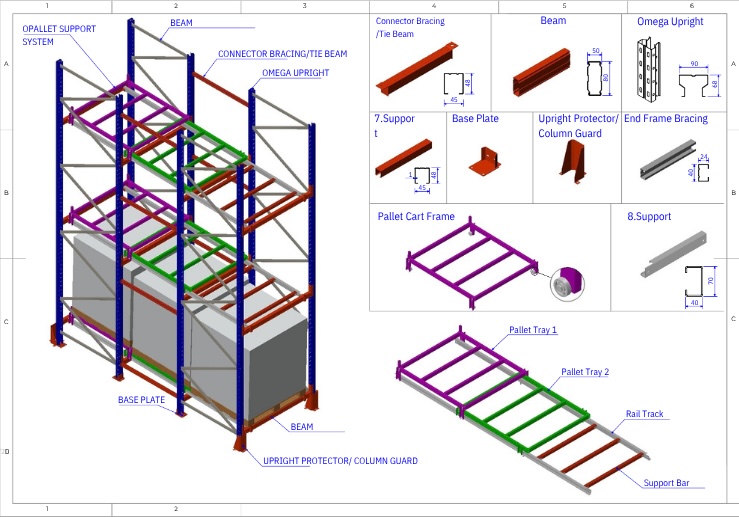

Push Back Pallet Racking stores multiple pallets in depth while allowing all loading and retrieval to take place from the same aisle. Pallets are positioned on inclined rails or nested carts. When another pallet is loaded, the existing pallets are pushed further into the lane. When the front pallet is removed, gravity moves the remaining pallets forward towards the retrieval position. The system operates on a Last-In, First-Out basis and provides a practical balance between higher storage density and efficient pallet handling. Retail Fixtures Australia can tailor Push Back Racking around your pallet dimensions, loads, SKU profile and warehouse layout.
- Stores several pallets in depth to provide greater density than conventional Selective Racking
- Reduces the number of access aisles required
- Allows loading and retrieval from a single aisle
- Eliminates the need for forklifts to enter deep storage lanes
- Delivers efficient LIFO stock handling
- Ideally suited for storing multiple pallets of the same SKU
Need help deciding if Double Deep Racking suits your warehouse?
Our team can assess your warehouse layout, stock profile, pallet sizes, load requirements and handling equipment to recommend a practical configuration.
Talk to our racking team →High-density pallet storage with efficient single-aisle access.
Push Back Pallet Racking stores multiple pallets in depth while allowing all loading and retrieval to take place from the same aisle. Pallets are positioned on inclined rails or nested carts. When another pallet is loaded, the existing pallets are pushed further into the lane. When the front pallet is removed, gravity moves the remaining pallets forward towards the retrieval position. The system operates on a Last-In, First-Out basis and provides a practical balance between higher storage density and efficient pallet handling. Retail Fixtures Australia can tailor Push Back Racking around your pallet dimensions, loads, SKU profile and warehouse layout.
- Stores several pallets in depth to provide greater density than conventional Selective Racking
- Reduces the number of access aisles required
- Allows loading and retrieval from a single aisle
- Eliminates the need for forklifts to enter deep storage lanes
- Delivers efficient LIFO stock handling
- Ideally suited for storing multiple pallets of the same SKU
| SKU | 594317 |
Mezzanine Racking Specifications
| Maximum height | 9 m |
|---|---|
| Moving speed | 10-15 m/min |
| Filling capacity | 75-80% |
| Slide slope | 1-2 degrees |
| Load capacity | 2000 kg/pallet |
| Maximum depth | 2-5 pallets |
Be The First To Review This Product!
Help other retailfixturesaustralia.com.au users shop smarter by writing reviews for products you have purchased.
Related Products in this Category
Frequently Asked Questions
Push Back Racking normally operates on LIFO principles.
No. Loading and retrieval are performed from the aisle face.
Lane depth varies according to the selected configuration, pallet size, loads and operational requirements.
It works best where multiple pallets of the same SKU can be allocated to individual lanes.
Push Back generally uses LIFO movement from one aisle. Pallet Flow loads from one side and retrieves from the other to provide FIFO stock rotation.
Potentially, yes. The suitability of the system and materials should be assessed for the operating environment.
