Shuttle Rack
Combine high-density storage with automated pallet movement. Shuttle Racking uses a powered shuttle to move pallets within deep storage lanes, reducing forklift travel and improving warehouse efficiency.
All Filters
Shuttle Rack
SKU code: 594318
High-density pallet storage with automated movement inside the rack.

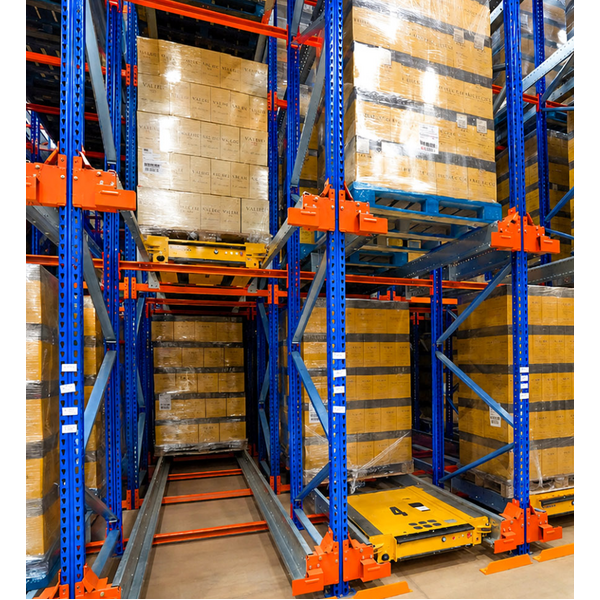

Shuttle Racking combines deep-lane pallet storage with a powered shuttle that moves pallets through the storage channel.

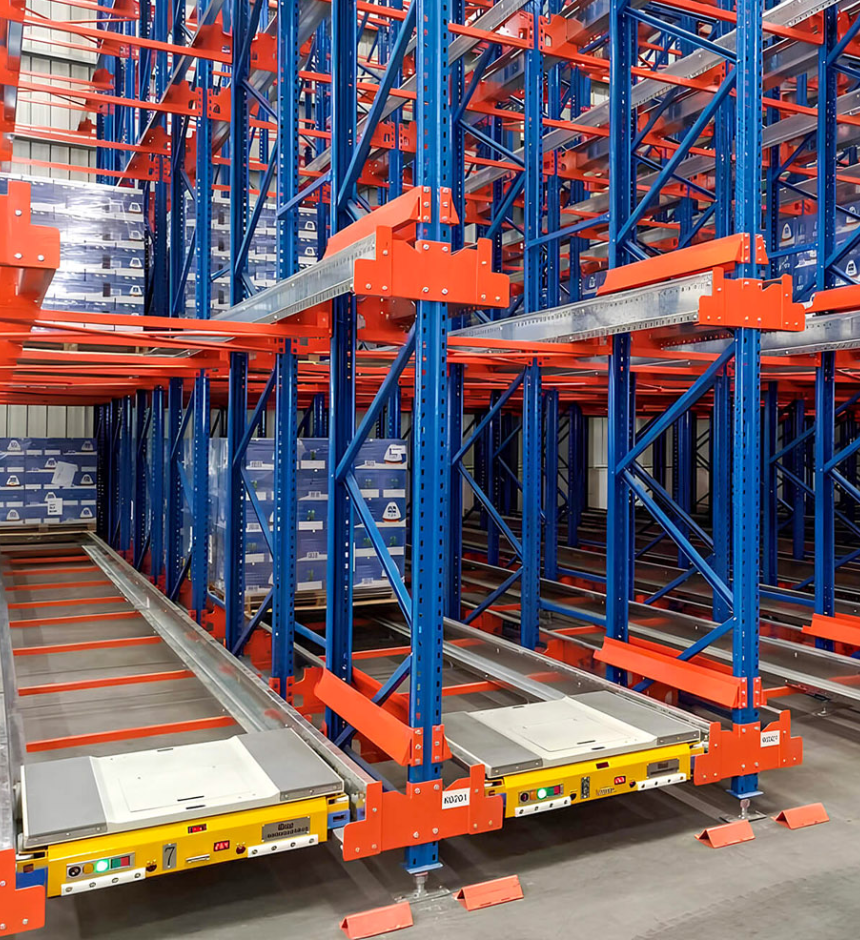

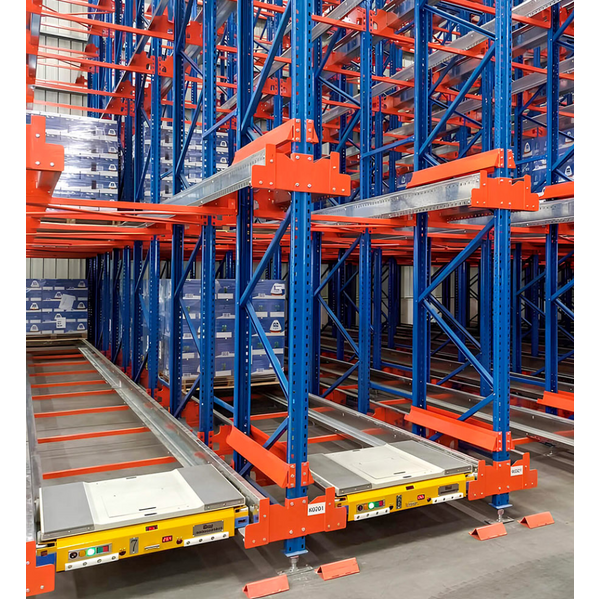

Instead of a forklift travelling deep inside each lane, the forklift places the pallet at the entrance. A battery-powered or motor-driven shuttle then transports the pallet along rails to the required storage position.
This reduces forklift travel within the rack structure and makes Shuttle Racking particularly suitable for operations managing high pallet volumes and repeated movements.
Need help deciding if Double Deep Racking suits your warehouse?
Our team can assess your warehouse layout, stock profile, pallet sizes, load requirements and handling equipment to recommend a practical configuration.
Talk to our racking team →High-density pallet storage with automated movement inside the rack.
Shuttle Racking combines deep-lane pallet storage with a powered shuttle that moves pallets through the storage channel.
Instead of a forklift travelling deep inside each lane, the forklift places the pallet at the entrance. A battery-powered or motor-driven shuttle then transports the pallet along rails to the required storage position.
This reduces forklift travel within the rack structure and makes Shuttle Racking particularly suitable for operations managing high pallet volumes and repeated movements.
| SKU | 594318 |
Shuttle Racking Specifications
| Pallet size | 1200 x 1000 mm |
|---|---|
| Load capacity | 500-1500 kg/pallet |
| Shelf height | 20-30 m |
| Maximum depth | 40 m |
| Storage capacity | 20-30 pallets/row |
| Operating mode | LIFO / FIFO |
| Speed - no load | 1.0 m/s |
| Speed - with load | 0.8 m/s |
| Automation | Continuous automatic pallet in/out; automatic single output |
Be The First To Review This Product!
Help other retailfixturesaustralia.com.au users shop smarter by writing reviews for products you have purchased.
Related Products in this Category
Frequently Asked Questions
The forklift places the pallet at the lane entrance and the powered shuttle transports it through the rack.
Generally no, which reduces forklift travel within the deep-lane rack structure.
Certain layouts can support FIFO operation where pallets are loaded and retrieved from opposite ends.
Not necessarily. Many pallet shuttle systems are semi-automated and still use forklifts for transferring pallets to and from the rack.
It becomes particularly relevant where pallet volumes, storage density and repeated movements justify a more automated approach.
Yes. Shuttle Racking is commonly considered for high-density temperature-controlled environments.
